The OEM Hayward Cork Pod Shoe Kit AXV014FNP is a replacement part designed for Hayward's Pool Vac, Navigator, AquaBug, Diver Dave, and Wanda the Whale pool cleaners. This kit includes four cork pod shoes specifically engineered for vinyl pool surfaces, ensuring efficient movement and thorough cleaning. The cork material provides optimal traction and helps your cleaner navigate the pool without causing damage to delicate surfaces. The shoes are easy to install and are essential for maintaining the performance and longevity of your pool cleaner​.

Highlights

• Designed for Vinyl Pool Surfaces: The Hayward Cork Pod Shoe Kit AXV014FNP is specially engineered to provide optimal traction for Hayward's Pool Vac, Navigator, AquaBug, Diver Dave, and Wanda the Whale pool cleaners on delicate vinyl pool surfaces.

• Efficient Movement and Cleaning: The cork material ensures smooth navigation across the pool floor, enhancing the cleaner's ability to thoroughly remove dirt and debris without causing surface damage.

• Easy to Install: This kit includes four replacement cork pod shoes that are simple to install, allowing you to maintain the performance of your pool cleaner with minimal effort.

• Essential for Cleaner Longevity: By ensuring proper traction and movement, these cork shoes play a crucial role in extending the lifespan and efficiency of your pool cleaner, making them a vital part of regular maintenance.

Includes

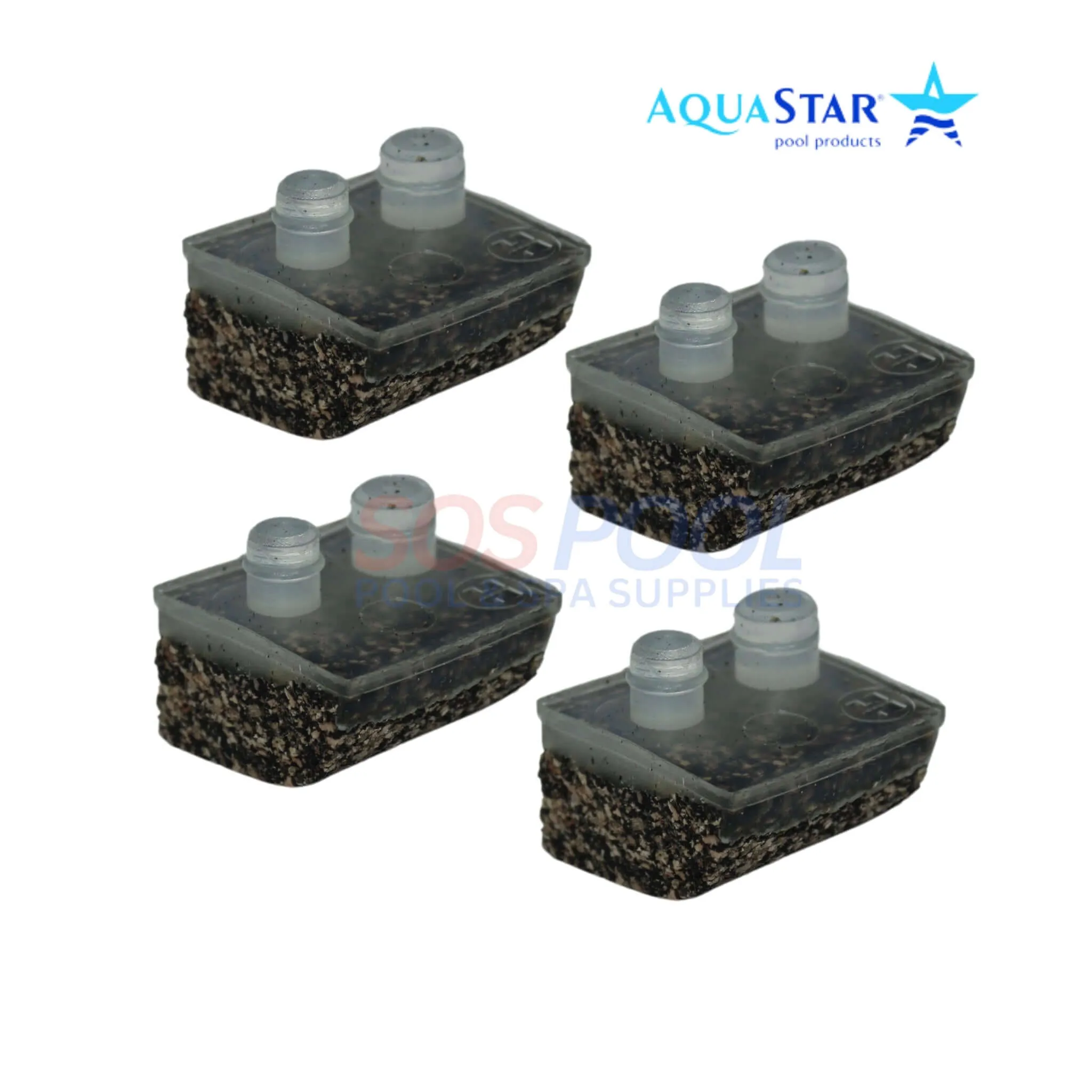

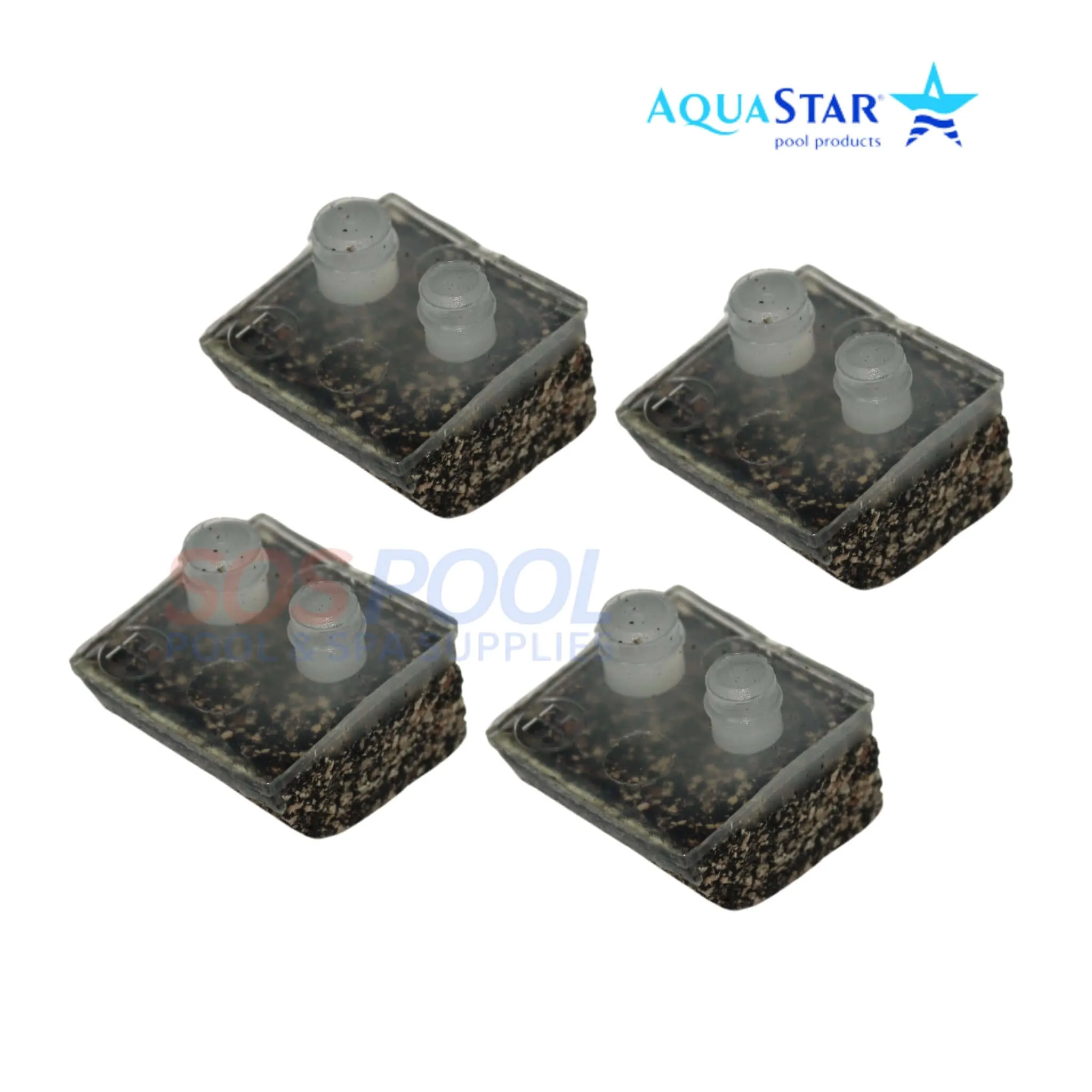

• (4) Hayward Cork Pod Shoes

Compatibility

• Hayward Pool Vac Cleaners
• Hayward Navigator Cleaners
• Hayward AquaBug Cleaners
• Hayward Diver Dave Cleaners
• Hayward Wanda the Whale Cleaners

Instructions

1. Check the condition of the “shoes, wings and flaps” periodically. The shoes and wings have wear indicators on their sides and should be checked occasionally to determine if they need replacing. The shoe wear indicator is a line on the side of the shoe that appears as a difference in texture. When this texture difference is no longer visible at the
bottom of the shoe when viewed from either side, the shoes must be changed. Also on the side, the wing wear indicator is a horizontal line which has three (3) vertical lines above it. When you can no longer see the horizontal line, the wings must be changed. The Hayward Tune-Up Kit is available from your dealer.
Shoes, wings and flaps may also be purchased separately.

2. SHOE REPLACEMENT:
a) Turn unit upside down.
b) Insert screwdriver between foot and shoe on one of the pads (see Figure 8).
c) Using a lifting motion, remove the shoe from the foot.
d) Dip a new shoe in water and attach the shoe to the foot, making sure to put the small
post into the small hole and the large post into the large hole. These posts and holes
are different sizes to prevent the shoes from being improperly installed.
e) Repeat Steps b,c, and d for each shoe.
